Simple, Effective Electromagnetic Fluid Filtration

MODELS/SIZES

Six Filter Sizes To Fit Your Need

BALLMATRIX^® MODEL PARAMETERS

Model 30

Design Pressure: 300 psig / 2068 kpa

Design Temperature: 300 °F / 149 °C

Design Flow Rate: 2,368 gpm / 538 m3/hr

Minimum Flush Rate: 1130 gpm / 256 m3/hr process fluid

Flush Volume at Maximum Flush Flow: 280 gals. / 1061 l (max)

Crud Retention (approximately): 23 lbs / 10.5 kg

Model 26

Design Pressure: 300 psig / 2068 kpa

Design Temperature: 300 °F / 149 °C

Design Flow Rate: 1760 gpm / 400 m3/hr

Minimum Flush Rate: 840 gpm / 190 m3/hr process fluid

Flush Volume at Maximum Flush Flow: 210 gals. / 796 l (max)

Crud Retention (approximately): 14 lbs. / 6.2 kg

Model 22

Design Pressure: 300 psig / 2068 kpa

Design Temperature: 300 °F / 149 °C

Design Flow Rate: 1240 gpm / 281 m3/hr

Minimum Flush Rate: 590 gpm / 134 m3/hr process fluid

Flush Volume at Maximum Flush Flow: 150 gals. / 569 l (max)

Crud Retention (approximately): 10 lbs. / 4.4 kg

Model 16

Design Pressure: 300 psig / 2068 kpa

Design Temperature: 300 °F / 149 °C

Design Flow Rate: 650 gpm / 148 m3/hr

Minimum Flush Rate: 310 gpm / 70 m3/hr process fluid

Flush Volume at Maximum Flush Flow: 77 gals. / 292 l (max)

Crud Retention (approximately): 5 lbs. / 2.2 kg

Model 12

Design Pressure: 300 psig / 2068 kpa

Design Temperature: 300 °F / 149 °C

Design Flow Rate: 400 gpm / 91 m3/hr

Minimum Flush Rate: 194 gpm / 44 m3/hr process fluid

Flush Volume at Maximum Flush Flow: 48 gals. / 182 l (max)

Crud Retention (approximately): 3 lbs. / 1.4 kg

Model 8

Design Pressure: 300 psig / 2068 kpa

Design Temperature: 300 °F / 149 °C

Design Flow Rate: 180 gpm / 41 m3/hr

Minimum Flush Rate: 85 gpm / 19 m3/hr process fluid

Flush Volume at Maximum Flush Flow: 25 gals. / 95 l (max)

Crud Retention (approximately): 1.39 lbs. / .63 kg

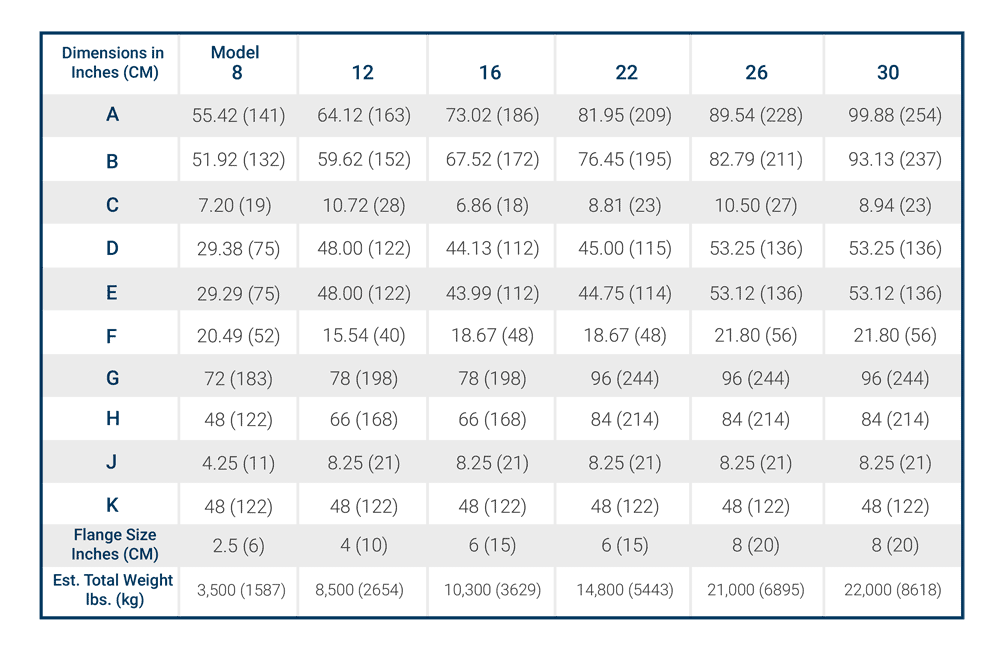

BALLMATRIX^® MODEL DIMENSIONS

^
